型號(hào):MT-5C3028

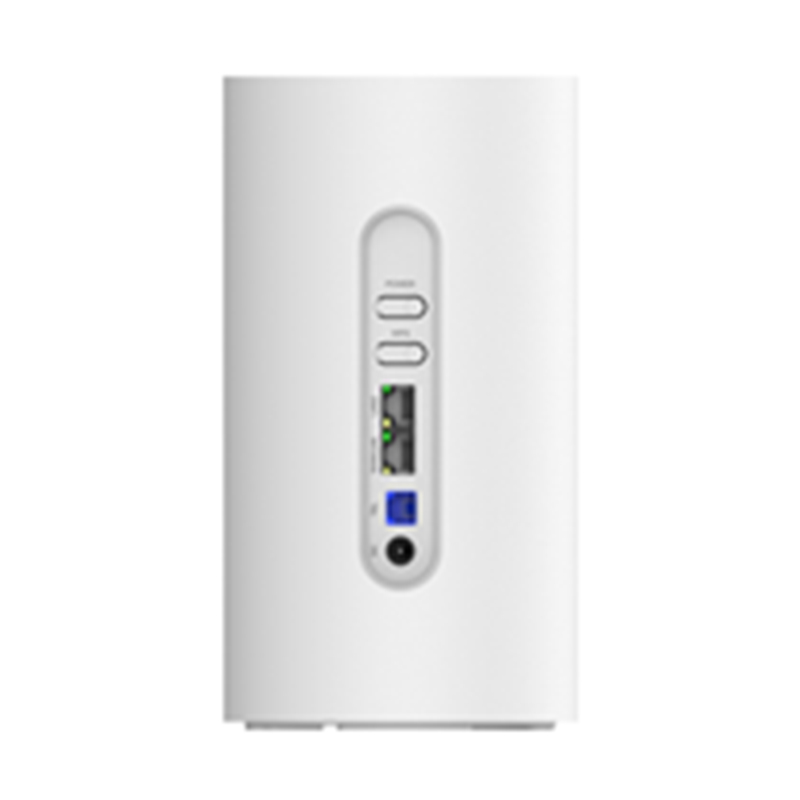

品名:5G CPE


在線詢價(jià)

Dimension

187*105.98*103.4mm

Bands

5G   NR: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n71/n77/n78/n79

LTE   FDD: B1/3/5/7/8/18/19/20/28/32/71; LTE TDD: B38/39/40/41/42/43/46

WCDMA:   B1/5/8

Form factor

LTE   CPE

Wi-Fi

802.11   b/g/n/ac/ax ; 2.4Ghz    2*2MIMO 574Mbps;  5.8Ghz   2*2/160M   2402Mbps

Data Rates

NR sub6:256QAM Downlink: up to 2.4Gbps;   Uplink:900Mbps

LTE:256QAM Downlink/Uplink up to  1.6Gbps/211Mbps

5G NR DL 4*4 MIMO;  UL:2*2 MIMO LTE DL:4*4 MIMO

Hardware

RJ45

1*   RJ45 auto WAN/LAN,1*RJ45 with 10/100/1000Mbps

RJ11

1*RJ11   optional

SIM

4FF , eSIM   optional

LED

Power/Wi-Fi/4G/5G/Tel

Antenna

5G/LTE- Internal  antenna *4, Wi-Fi-Internal antenna *2

Power

12V/2A

Battery

Not   Support

Button

Power,RESET

Software

Update

FOTA   & Local update

Support   OS

Compatible with Windows / MACOS /   Linux / Android

Others

IPv4/IPv6

Operation   Temperature

Operation   Temperature: -10 to 45℃ / Operation Humidity: 10% to 80%

Storage   Temperature: -40 to 60℃ /  Storage   Humidity: 5% to 95%
