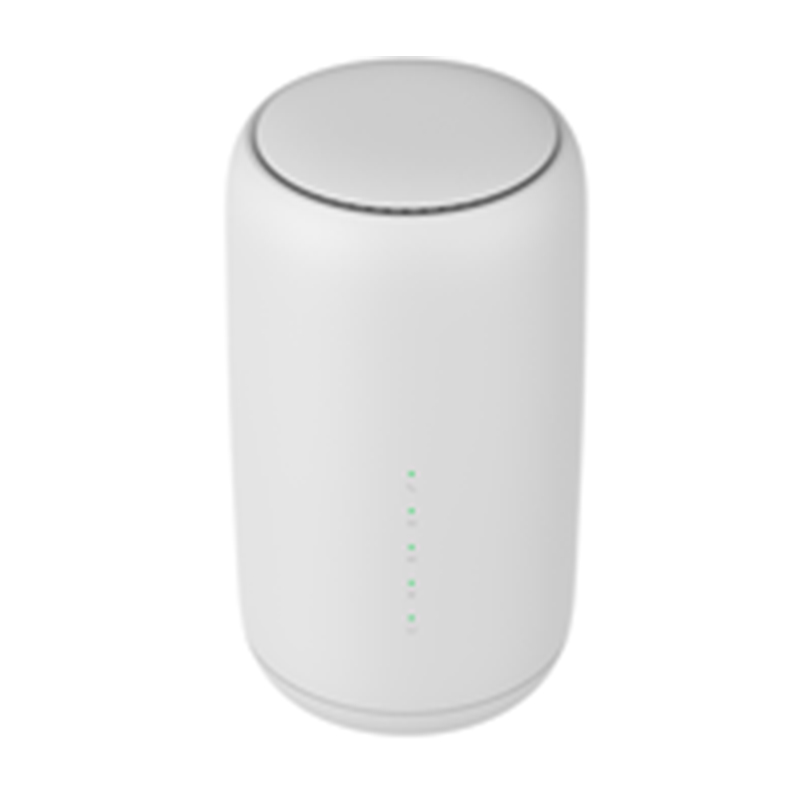

型號:MT-5C1815

品名:5G CPE


在線詢價

Dimension

93*96*180mm

Bands

5G   NR :n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78

LTE   FDD : B1/B3/B5/B7/B8/B20/B28/B32

LTE   TDD : B38/B40/B41/B42/B43

Form factor

5G/4G   CPE

Wi-Fi

802.11   b/g/n/ac/ax ; 2.4Ghz    2*2 MIMO 600Mbps;  5.8Ghz 2*2 MIMO 1200Mbps

Data Rates

NR sub6: DL   3.8Gbps/UL 2.5Gbps

LTE:DL   1.6Gbps/UL 316Mbps

5G NR DL 4*4 MIMO;  UL:2*2 MIMO ;LTE DL:4*4 MIMO

Hardware

RJ45

1*   RJ45 auto WAN/LAN1*RJ45 with 10/100/1000Mbps

RJ11

1*RJ11   optional

SIM

4FF, eSIM   optional

LED

Power/Wi-Fi/4G/5G/Tel

Antenna

5G/LTE- Internal antenna *4,   Wi-Fi-Internal antenna *2

Power

12V/2A

Battery

Not   Support

Button

Power,WPS

Software

Update

FOTA   & Local update

Support   OS

Compatible with Windows / MACOS /   Linux / Android

Others

IPv4/IPv6

Operation   Temperature

Operation   Temperature:0 to 45℃ / Operation Humidity: 10% to 80%

Storage   Temperature: -20 to 70℃ /  Storage   Humidity: 5% to 95%
